Quiet-Vent 2 in 1 External Wall Grille

2 in I external wall grille

The 2 in 1 external terminal wall grille combines the outdoor air and exhaust air connection in one compact product

Manufactured of stainless steel with options of powder coating in white (RAL9010) and Black (RAL9005)-

Designed to allow installation of external pipes in a compact location with minimal air recirculation

Available in duct diameter connections 125mm, 150mm 180mm

Key features

• Time and space saving
• Stainless steel construction
• 125,150, 180mm connections

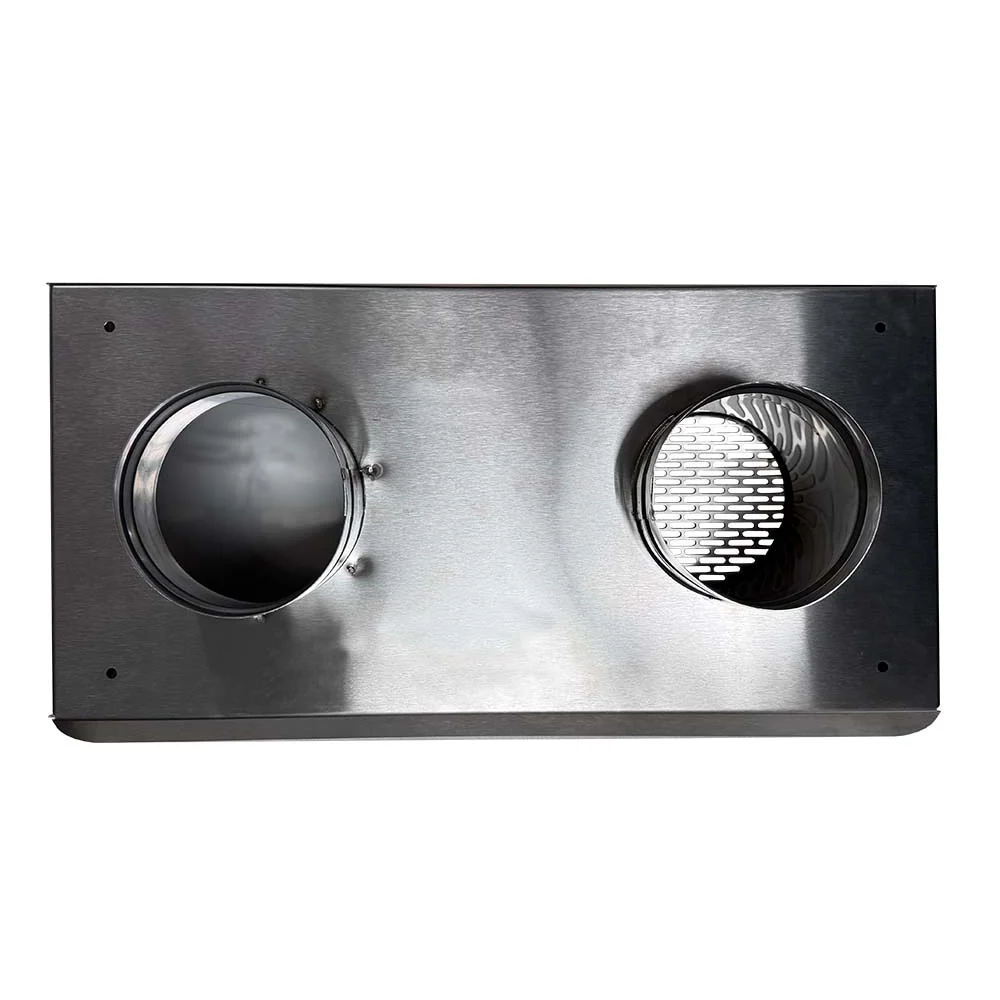

• Male spigots at rear for superior airtightness
• Four fixing holes for wall mounting
• Easy to disassemble for easy installation
• Compact solution
• Minimal airflow recirculation
• Low pressure loss
• Rain protection


*Powder coating is recommended in areas of salt corrosion

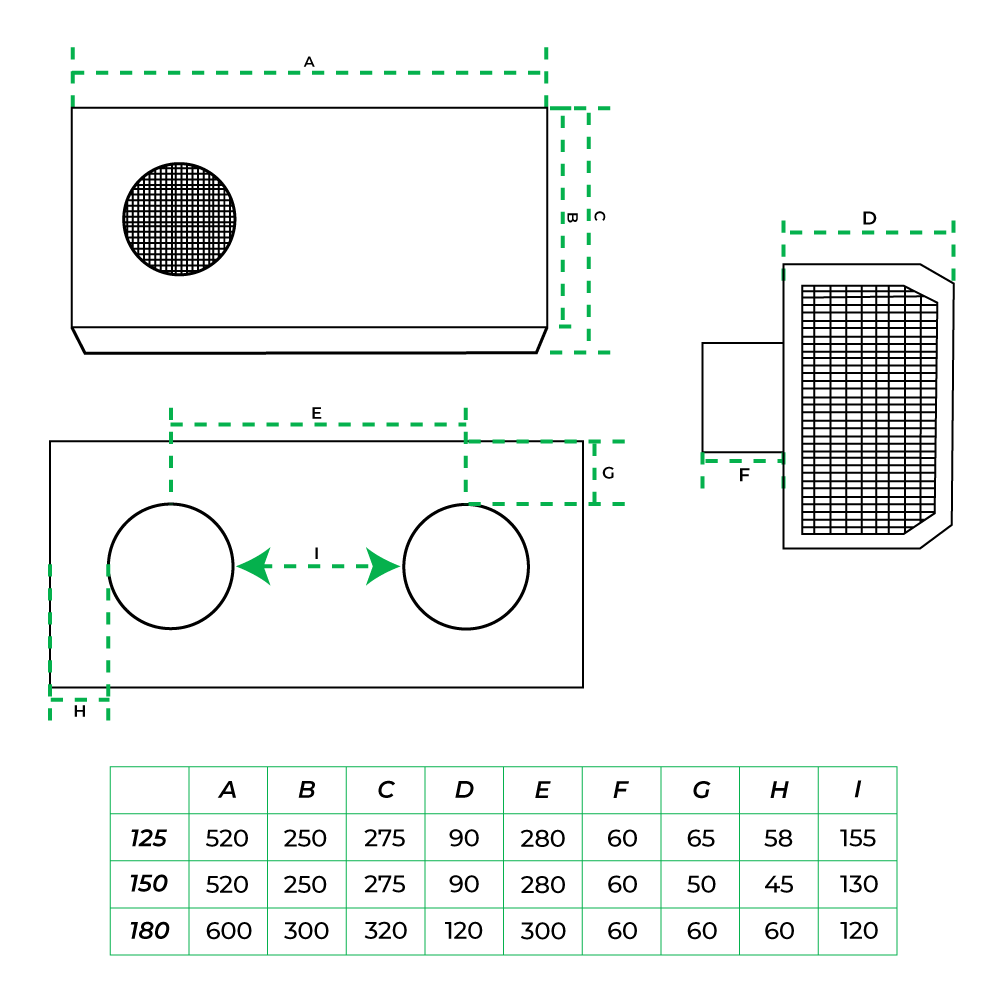

Dimensions

QV-2IN1SSG-125 L-522 x H-273 x W-92

QV-2IN1SSG-150 L-522 x H-273 x W-92

QV-2IN1SSG-180 L-602 x H-322 x W-120
